Logistic regression

After you have familiar with the idea that running GLM on python, let’s try more models on the HCP dataset. If you already forget the dataset, plesae go to the Dataset instructions on pp. 24-25,36 and 50-51 of the HcP Reference Manual. In order to use this dataset, please electronically sign the HCP data use terms at ConnectomeDB.

First question first, what is the logistics model? In general, the logistic model has been applied for the probability of binary classes or event existing such as pass/fail, win/lose, alive/dead or healthy/sick. This can be extended to model several classes of events such as determining whether an image contains a cat, dog, lion, etc. Each object would be assigned a probability between 0 and 1.In regression analysis, logistic regression is estimating the parameters of a logistic model. If you want to know more, here is a good video for logistic regression.

Now, as we can see the brain activation under different conditions as a group, we can use the Logistic regression for decoding the data. In the context of HCP dataset and gambling project, It means that we can predict the brain activation of different conditions based on the output of GLM we analyzed before:

X = data
X_1 = data.T
Y = res_reg
Y_1 = Y.T

# Define the model
log_reg = LogisticRegression(penalty="none")

# fit the model
log_reg.fit(X_1, Y_1)
y_pred = log_reg.predict(X_1)

Now we need to evaluate the model’s predictions. We’ll do that with an accuracy score. The accuracy of the classifier is the proportion of trials where the predicted label matches the true label:

def compute_accuracy(X, y, model):
#Compute accuracy of classifier predictions.

Args:
    X (2D array): Data matrix
    y (1D array): Label vector
    model (sklearn estimator): Classifier with trained weights.
  Returns:
    accuracy (float): Proportion of correct predictions.

y_pred = model.predict(X)
accuracy = (y == y_pred).mean()
return accuracy

# Compute train accurcy
train_accuracy = compute_accuracy(X_1, Y_1, log_reg)
print(f"Accuracy on the training data: {train_accuracy:.2%}")

It seems like that the Classification accuracy on the training data is 100%! That might sound impressive, but there is a concept called overfitting: the classifier may have learned something idiosyncratic about the training data. If that’s the case, it won’t have really learned the underlying data->decision function, and thus won’t generalize well to new data. To check this, we can evaluate the cross-validated accuracy:

accuracies = cross_val_score(LogisticRegression(max_iter=5000,penalty='none'), X_1, Y_1, cv=50) # k=50 crossvalidation

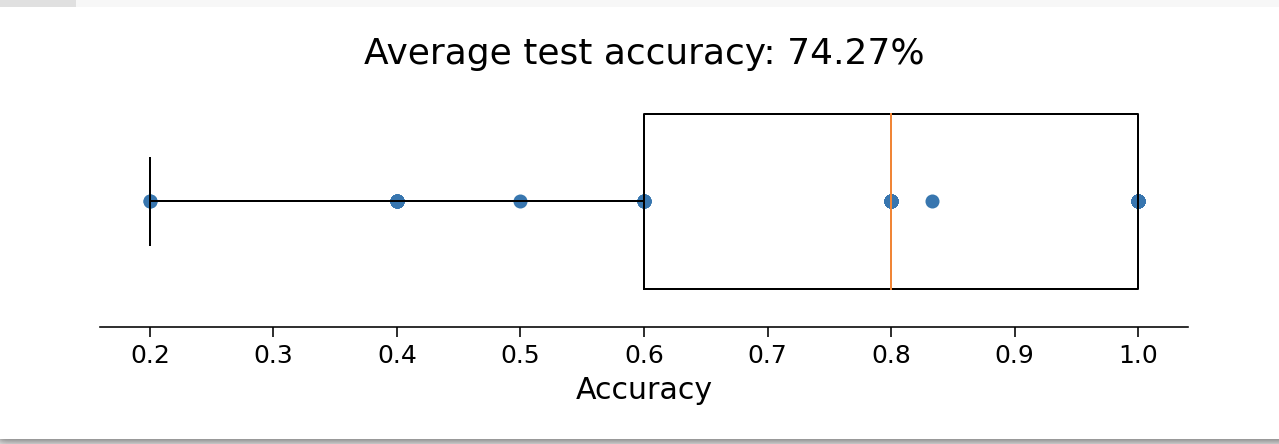

Let’s plot the accuracy on the test data:

#markdown Run to plot out these `k=50` accuracy scores.
f, ax = plt.subplots(figsize=(8, 3))
ax.boxplot(accuracies, vert=False, widths=.7)
ax.scatter(accuracies, np.ones(50))
ax.set(
  xlabel="Accuracy",
  yticks=[],
  title=f"Average test accuracy: {accuracies.mean():.2%}"
)
ax.spines["left"].set_visible(False)
../../_images/Accur.png
